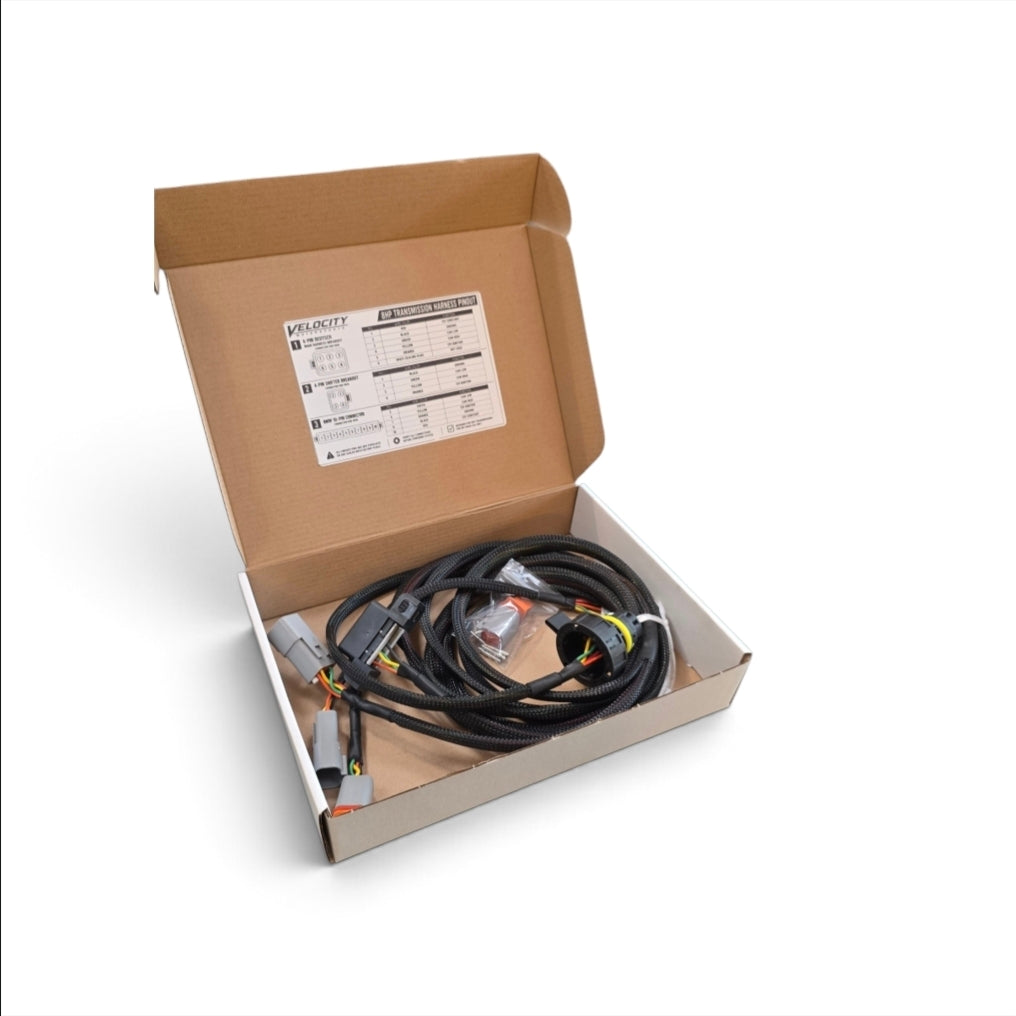

Universal ZF 8HP Swap Harness, MaxxECU & CAN Bus TCU Compatible

The LSE9X Universal ZF 8HP Swap Harness is a fully terminated wiring solution designed to simplify the installation and control of a Gen 1 ZF 8HP automatic transmission in virtually any swap application.

Designed for ZF 8HP45, 8HP70, and 8HP90 transmissions, this harness supports compatible BMW, Jaguar, and Dodge/Chrysler Gen 1 8HP transmissions and is compatible with MaxxECU Mini, Sport, Race, and Pro ECUs when used for standalone 8HP transmission control.

The harness can also be used with other CAN bus ZF 8HP controllers that utilize the standard Gen 1 8HP pinout configuration.

Instead of building an 8HP wiring harness from scratch, sourcing individual connectors, or modifying an OEM harness, the LSE9X Universal 8HP Swap Harness provides a clean, fully terminated, serviceable solution ready to integrate into your swap.

Transmission Compatibility

Designed for Gen 1:

- ZF 8HP45

- ZF 8HP70

- ZF 8HP90

Compatible with applicable:

- BMW ZF 8HP transmissions

- Jaguar ZF 8HP transmissions

- Dodge / Chrysler / Mopar ZF 8HP transmissions

Controller Compatibility

Compatible with:

- MaxxECU Mini

- MaxxECU Sport

- MaxxECU Race

- MaxxECU Pro

- Other CAN bus 8HP controllers using the standard Gen 1 ZF 8HP pinout

When used with a MaxxECU, the ECU can be configured to provide standalone control of the ZF 8HP transmission.

BMW 10-Pin Shifter Connection Included

The harness includes the connection for the commonly used BMW 10-pin electronic shifter, making it easy to integrate a BMW shifter into your 8HP swap without building or re-pinning the shifter wiring from scratch.

The main harness uses a Deutsch DT 4-pin modular shifter breakout, allowing the shifter portion of the harness to be changed independently from the main transmission harness.

The standard harness includes the BMW 10-pin shifter connector.

A compatible Dodge/Chrysler shifter adapter pigtail can be used in place of the BMW connection without cutting or re-pinning the main harness.

This modular design gives you the flexibility to change shifter configurations later while keeping the main 8HP swap harness intact.

Harness Features

- Fully terminated universal ZF 8HP swap harness

- Designed for Gen 1 8HP45, 8HP70, and 8HP90

- Compatible with applicable BMW, Jaguar, and Dodge/Chrysler 8HP transmissions

- Compatible with MaxxECU standalone 8HP control

- Supports other compatible CAN bus 8HP controllers

- Pre-terminated ZF 8HP transmission connection

- BMW 10-pin shifter connector included

- Modular DT 4-pin shifter breakout

- Optional Dodge/Chrysler shifter compatibility

- Deutsch connectors used throughout for easy serviceability

- Integrated OBD diagnostic breakout

- PT-CAN access for flashing and diagnostics

- No need to cut or re-pin the main harness when changing supported shifter configurations

What's Included

Main Deutsch DT 6-Pin Connection

Provides connections for:

- Switched 12V power

- Ground

- Ignition

- CAN High

- CAN Low

Pre-Terminated ZF 8HP Transmission Connector

Provides a direct plug-in connection to the factory transmission electronics on compatible BMW, Jaguar, and Dodge/Chrysler Gen 1 ZF 8HP transmissions.

BMW 10-Pin Shifter Connector

The standard harness includes the connector required for the BMW 10-pin electronic shifter.

The shifter connection interfaces with the main harness through a Deutsch DT 4-pin modular breakout, allowing the shifter configuration to be changed without modifying the main harness.

Modular Dodge/Chrysler Shifter Support

A compatible Dodge/Chrysler shifter adapter pigtail can be connected through the DT 4-pin shifter breakout.

Dodge/Chrysler shifter adapter sold separately.

OBD Diagnostic Breakout

Integrated OBD diagnostic connection with PT-CAN access for transmission flashing, configuration, troubleshooting, and diagnostics.

Why Use the LSE9X Universal 8HP Swap Harness?

A ZF 8HP swap requires more than simply supplying power to the transmission. The gearbox must communicate correctly with the transmission controller, shifter, diagnostic equipment, and CAN bus network.

The LSE9X Universal 8HP Swap Harness brings those connections together into a purpose-built, fully terminated package.

Benefits include:

- Less custom wiring

- Faster installation

- Fewer potential wiring errors

- Cleaner swap installation

- Easier troubleshooting

- Easier transmission diagnostics

- Serviceable Deutsch connections

- BMW 10-pin shifter support included

- Flexible BMW or Dodge/Chrysler shifter configurations

- Support for popular BMW, Jaguar, and Dodge/Chrysler Gen 1 ZF 8HP transmissions

Frequently Asked Questions

What transmissions does the LSE9X Universal 8HP Swap Harness work with?

The harness is designed for compatible Gen 1 ZF 8HP45, 8HP70, and 8HP90 transmissions, including BMW, Jaguar, and Dodge/Chrysler applications.

Does this harness work with a ZF 8HP70?

Yes. The LSE9X Universal 8HP Swap Harness supports compatible Gen 1 ZF 8HP70 transmissions, along with supported 8HP45 and 8HP90 applications.

Does this harness work with Jaguar 8HP70 transmissions?

Yes. The harness supports compatible Jaguar Gen 1 ZF 8HP70 transmissions, making it an excellent wiring solution for swaps using a Jaguar-sourced 8HP70.

Does this harness work with BMW 8HP transmissions?

Yes. It supports compatible BMW Gen 1 ZF 8HP45, 8HP70, and 8HP90 transmission applications.

Does this harness work with Dodge or Chrysler 8HP transmissions?

Yes. It supports compatible Dodge, Chrysler, and Mopar Gen 1 ZF 8HP applications.

Is the BMW 10-pin shifter connector included?

Yes. The standard harness includes the connector for the BMW 10-pin electronic shifter.

Can I use a Dodge shifter instead?

Yes. The modular DT 4-pin shifter breakout allows a compatible Dodge/Chrysler shifter adapter pigtail to be used without cutting or re-pinning the main harness.

The Dodge/Chrysler shifter adapter is sold separately.

Does this harness work with MaxxECU?

Yes. It is compatible with MaxxECU Mini, Sport, Race, and Pro ECUs when configured for standalone ZF 8HP transmission control.

Can I use an 8HP controller other than MaxxECU?

Yes. The harness can also support compatible CAN bus ZF 8HP controllers that use the standard Gen 1 8HP pinout configuration.

Does the harness include an OBD diagnostic connection?

Yes. An OBD diagnostic breakout with PT-CAN access is included for flashing, diagnostics, configuration, and troubleshooting.

Do I need to modify the factory transmission wiring?

For supported applications, the LSE9X harness provides the required pre-terminated transmission and control connections, eliminating the need to build the main ZF 8HP control harness from scratch.
